Separator filters
Filtering coalesced droplets from gas or liquid
Part description

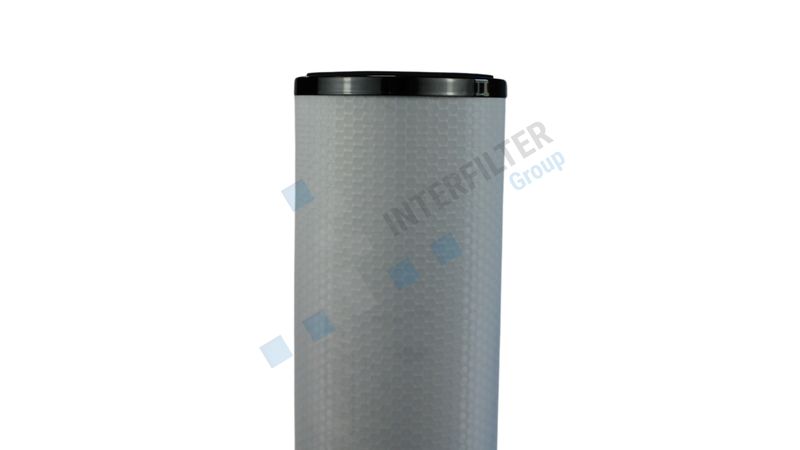

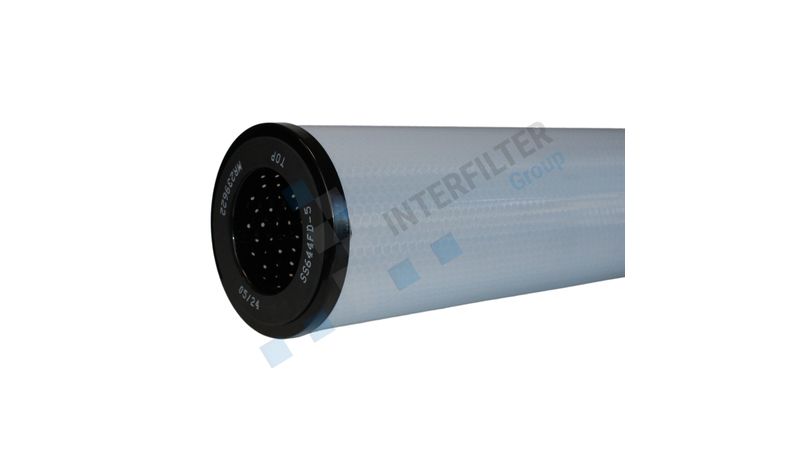

What is a separator filter element?
A separator filter element works in conjunction with a coalescer and ensures that the coalesced droplets from the previous filtration stage (the coalescer element) are separated and prevented from mixing again with the clean liquid or gas. The separator element consists of a water-repellent (hydrophobic) material that repels water droplets but allows air or oil to pass through.
Types of separator elements
Separator filters are commonly used in the oil and gas industry, for example, to separate water from oil. We offer separator elements available for various applications. The filter medium of these elements can be made of hydrophobic, synthetic mesh, or Teflon© coated mesh. Additionally, our SS series is tested and certified according to the 5th edition of EL 1581.
The operation of separator filters
- After the coalescer step, the liquid with larger droplets arrives at the separator.
- The hydrophobic material of the separator ensures that water droplets do not pass through but are separated from the flow.
Applications of separator filters
- Condensates of hydrocarbons, diesel, kerosene, LPG, lubricants, and aromatics.
- Fuel systems to completely remove water after coalescing.
- Natural gas treatment, where oil and water must be completely separated from the gas.
- Industry: chemicals, resins, solvents, hydraulics, oils, and lubricants.
- Petroleum refinery: hydrocarbon stocks, fuels, crude, condensates, and distillates.
- Pipelines and petroleum terminals: diesel, gas oil, kerosene, LNG, and LPG.
- Electricity generation: turbine lubricating oil and hydraulic oil.
- Pulp and paper: lubricating and hydraulic oils.
- Electricity transmission: transformer oils.
Separator element specifications
- Repelling capacity: depending on the material and filter configuration, effective at separating droplets of 5 microns and larger.
- Outer diameter sizes: 3 to 6 inches
- Nominal lengths: 11.5 to 56 inches
- Materials: hydrophobic synthetic fibers such as Teflon or PTFE.
- Operating pressure: usually between 1 and 150 bar, depending on the application.
- Recommended max. operating temperature: 115 °C
- pH range from 5 to 9
- Core and support cage: steel (galvanized or tinned)
- End caps: steel (galvanized or tinned)
- Seals: buna-n
- Washable & reusable
- Flow direction: inside to outside
- Certified according to the 5th edition of EL 1581
Non-binding advice on separator filter elements
For more information, you can read our specific separator filter datasheet or contact one of our team members. We are happy to help!
